Diviser
RE1U008
Analog clock divider

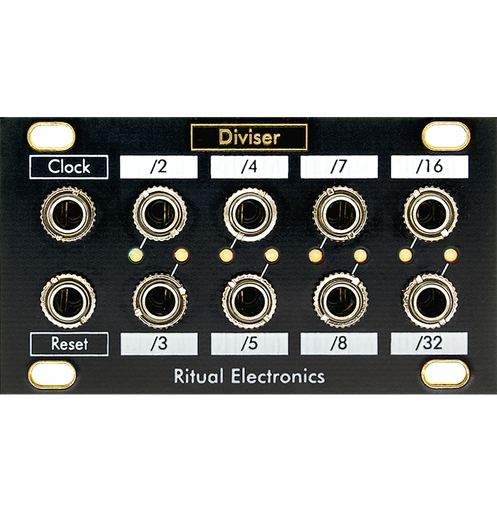

Diviser is an analog clock divider with one output per divison. It has odd & even divisions with 50% duty cycle.
Diviser is a 1U clock divider with odd & even outputs. It divides by 2, 3, 4, 5, 7, 8, 16 & 32 simultaneously
Diviser is based on CMOS chips it can run at audio speed to create subharmonics from an oscillator.
The reset input resets all the outputs to a high state.
Comparators are built in both the Clock and Reset inputs with threshold set at 2.5V. It means you can use any type of signals in these inputs.
Specifications
Technical characteristics
- Built in comparators on Clock & Reset inputs
- No microcontroller
- Even & Odd divisions (/2-/3-/4-/5-/7-/8-/16-/32)
- All outputs high when reset
| Width | 14HP Intellijel format frontpanel |
| Depth | 35mm |
| Power | 25mA @ +12V 3mA @ -12V 0mA @ +5V |
| Modulargrid | Diviser on Modulargrid |
| Manual | Diviser PDF Manual |
